The conventional horizontal wind turbine can be rotated with small wind force but
it's easily influenced by the wind direction so that rotation is unstable. Further
efficiency is decreased due to turbulence of airflow and noise and vibration were
occurred easily.
On the other hand, even though the conventional vertical wind turbine would not
be affected by wind direction and the rotation was stable and noise and vibration
were little, the problem was that in order to initiate a rotation, a certain amount of
wind power was necessary.
If not effected by wind direction and noise and vibration is little;
And if rotation can be initiated by small wind power and generator efficiency can be
higher, then Vertical Turbines shall become more ideal one.
One of the idea is why not initiate the rotation with small wind power by using
gears, clutches and motors in the vertical turbine?
However, that will make the mechanics complicate and likely will cause failure and
noise/vibration and will also make it heavy.

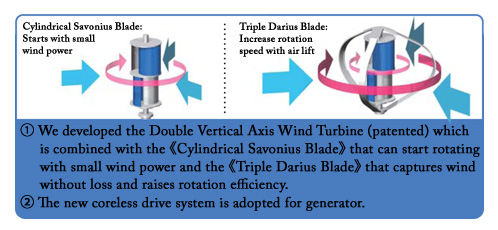

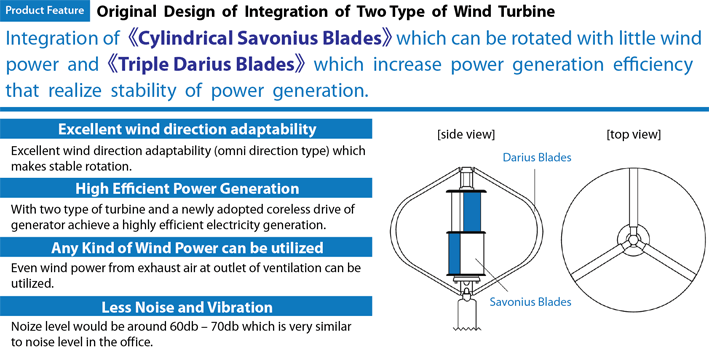

In order to solve these problems, two original devices were integrated into one, that is the [Vertical Turbine Wind Power Generator]
Now. An ideal compact wind power generator has been developed!
■Application
◆ Triple Hybrid
Combination of a private power
generating, wind and solar power can
reduce costs and CO2 emission.
◆ Smart Grid Correspondence
By using house roofs or land sites, it
is possible to combine wind and solar
power generation which is in line
with smart grid request (next
generation transmission network).
◆ Energy Recycle (Product Code:D-300)
Furthermore the boiler exhaust from
factories or cooler/heater exhaust
from large buildings can be utilized
for efficient energy recycle
| Vertical Wind Turbine Generator | |||||
|---|---|---|---|---|---|
| Product Code | DS300 | DS700 | DS1500 | DS3000 | |
| Rated Output | 300W | 700W | 1.5KW | 3.0KW | |
| Dimension(m) | Width | 1.24 | 1.93 | 2.80 | 4.00 |
| Height | 1.06 | 1.60 | 2.90 | 4.20 | |
| Cut-In Wind Speed | ＜3m/s | ＜3m/s | ＜3m/s | ＜3m/s | |
| Rating Wind Speed | 13.5m/s | 12m/s | 12m/s | 12m/s | |
| Cut-Out Wind Speed | 15m/s | 15m/s | 15m/s | 15m/s | |
| Survival Wind Speed | 60m/s | 60m/s | 60m/s | 60m/s | |
| Weight (Excluding Mast) |
25kg | 60kg | 380kg | 680kg | |
| Measurements | Mast height: 6.0m, Lamp position:4.2m |
| Material and Coating Specification | Steel tube (Diameter 48.6mm,Thickness 4mm) Hot-dip Galvanizing Method |
| Lamp Fitting | High Output White LED 24W Decoration Lamp: Colored LED 12W Wind Power Turbine Spotlight: White LED 1Wx2 |
| Solar Module | Solar Module 130W Polycrystalline Silicone (DC24V Polycrystalline Silicone) |
| Wind Power Generator | DS300: 300W(Rating Wind Speed 13.5m/s) Double Vertical Axis Turbine |
| Battery | AccumulatorDC12V/55AHx4 Deep Cycle (Silicone Power) Accumulator |
| Assembly | Bolt Tightening |
